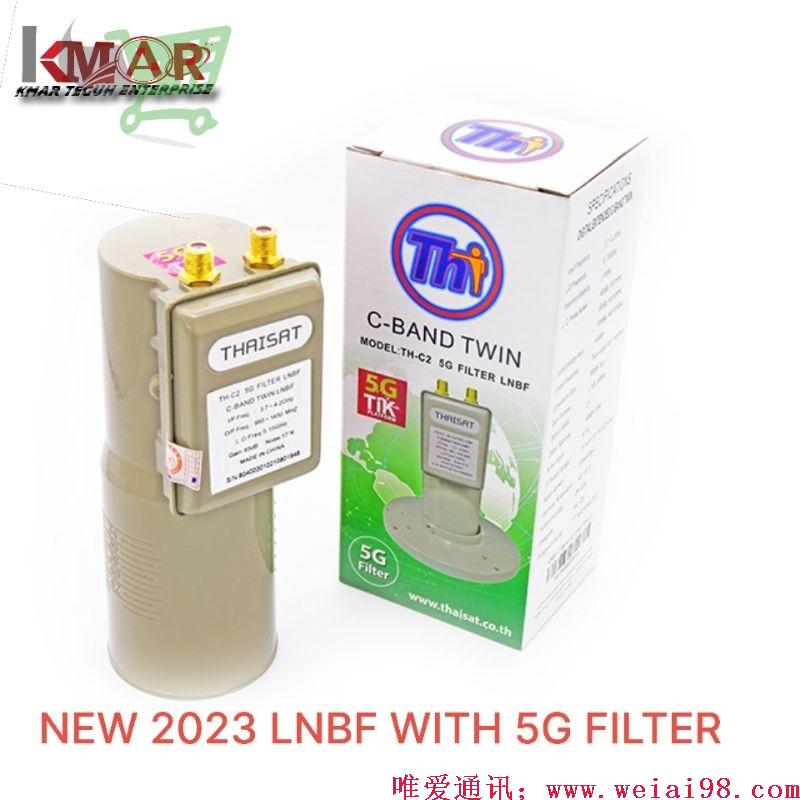

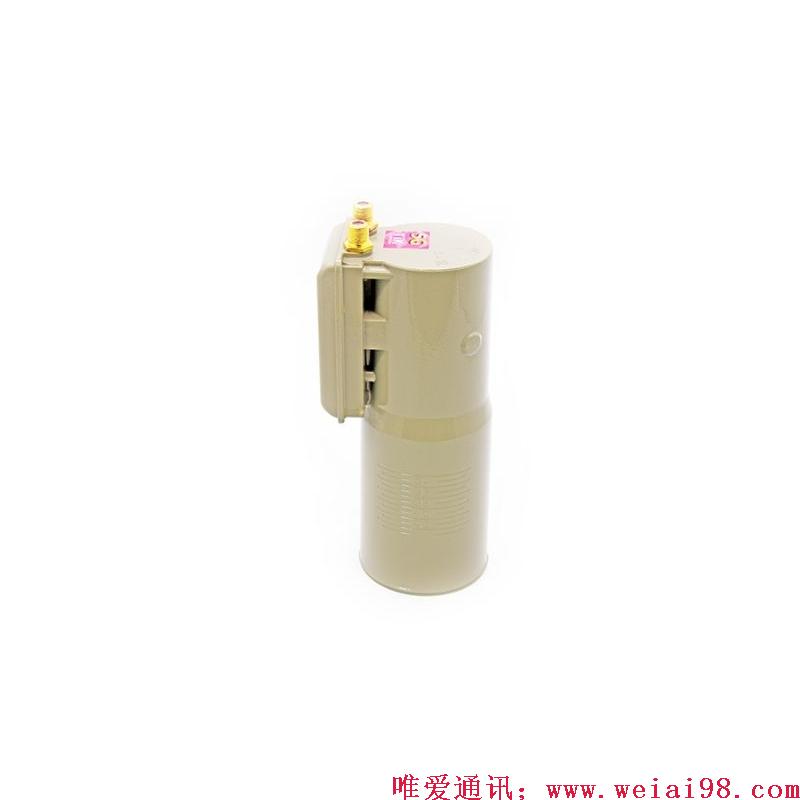

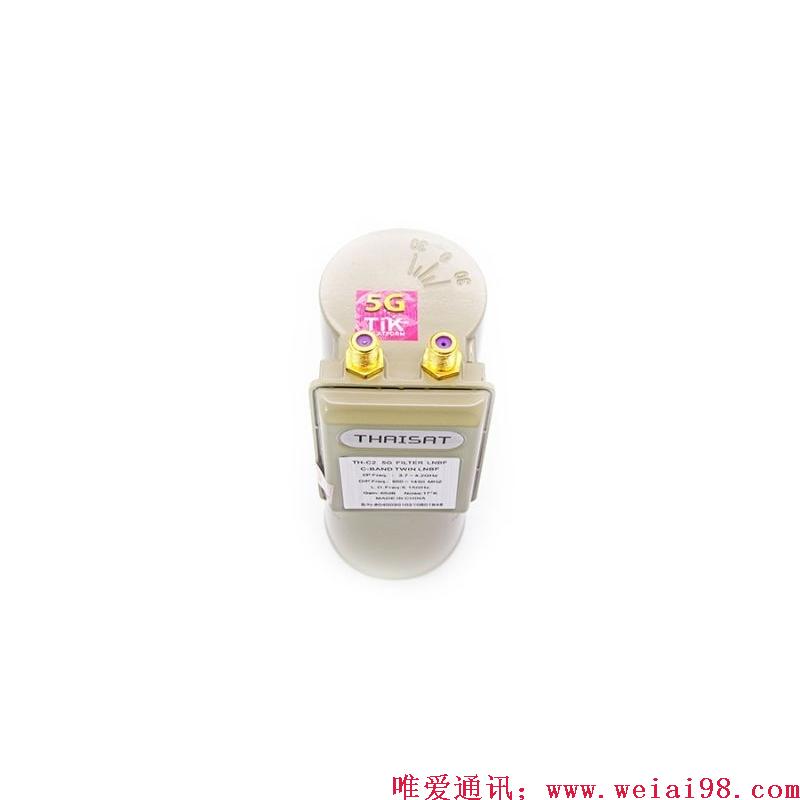

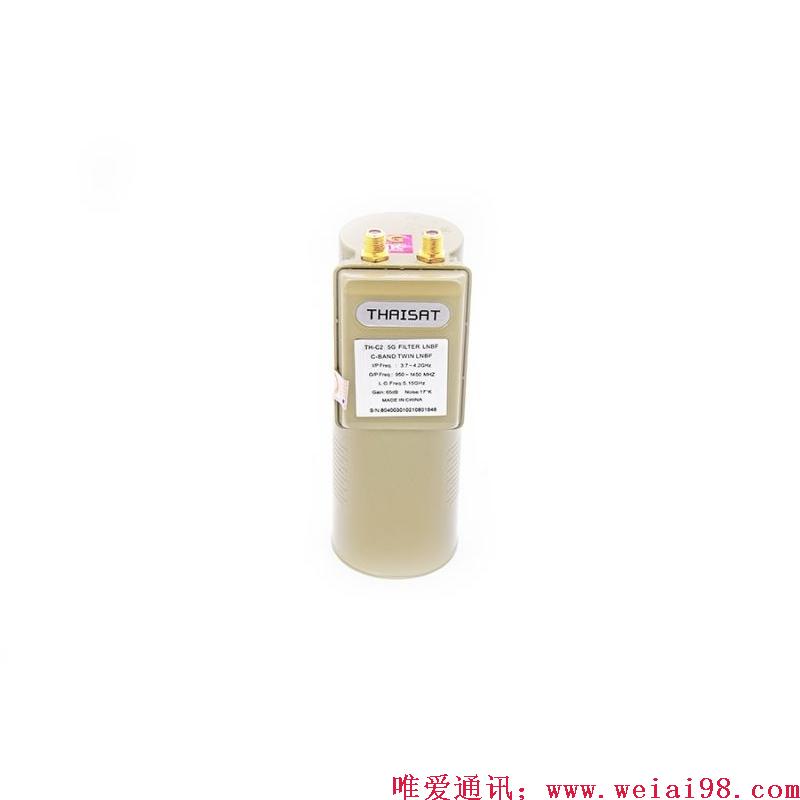

THAISAT TH-C2 C BAND LNB 抗5G高频头，只销售马来西亚市场，西马仓库发货

SPECIFICATION

Input Frequency Range :3.7 ~ 4.2 GHz

Output Frequency Range :Output 1:950~1450 MHz

Output 2:950~1450 MHz

Noise Figure :17±5Tek

Conversion Gain :65dB (Typ.)

Gain Flatness :±1dB(36MHz)

L.O. Frequency :5.150GHz

L.O. Frequency Stability :±1.0 MHz(Max.)@+25ºC

±2.0 MHz(Max.)@-30ºC+70ºC

Image Rejection :45dB (Min)

Output VSWR :2.5:1 (Max.)

Output Power :35BM (Min.)(at 1dB gain compression)

Connecter Type :75Ω Female Connecter

DC Current Consumption :18mA (typ.)

Polarity Switching Voltage :11-14.5V@VP

15.5-22V@VP

Operating Temperature :-40ºC~+80ºC

L.O. Phase Noise :-60dBc/ Hz@1KHz

-90dBc/ Hz@10KHz

-105dBc/ Hz@100KHz
