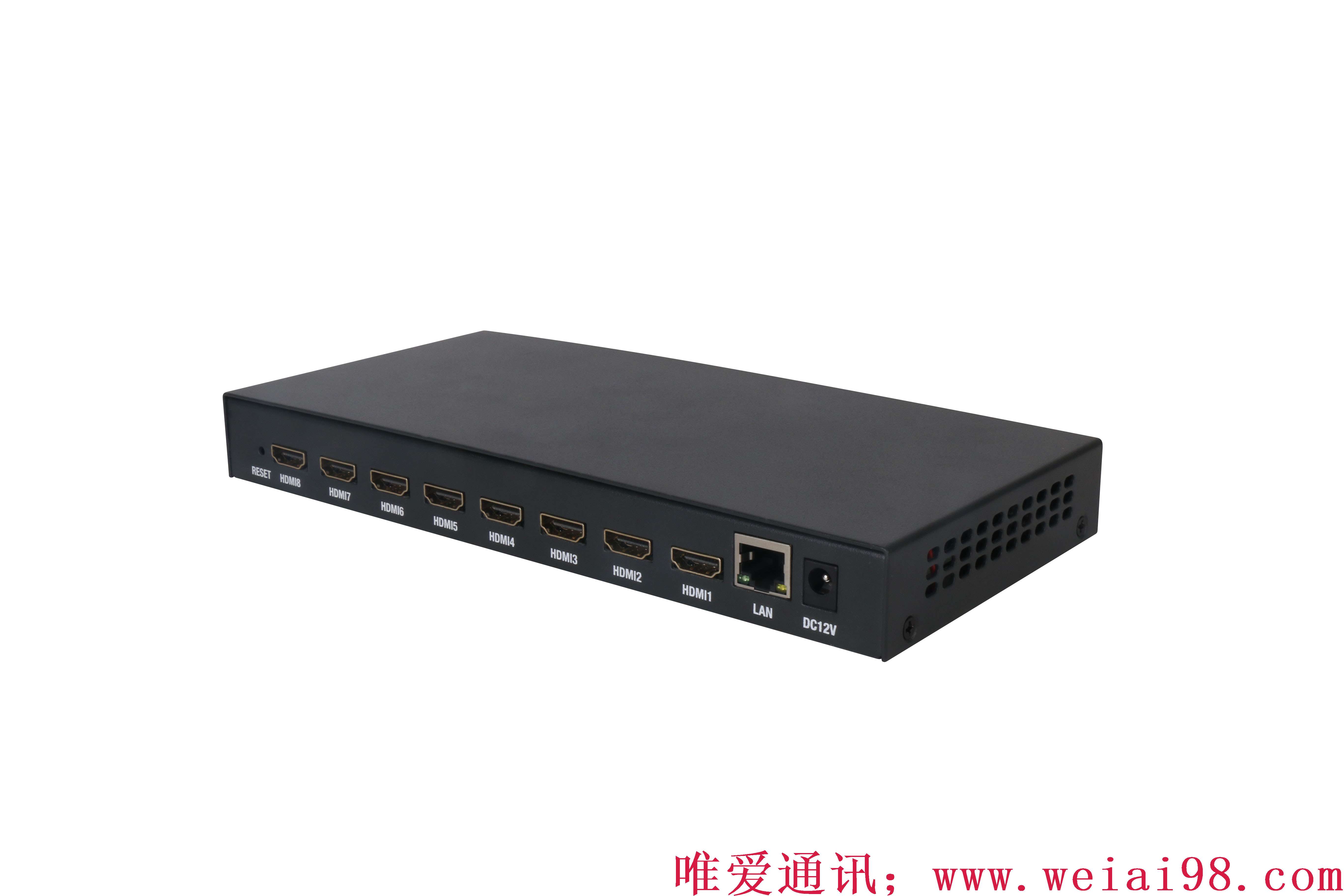

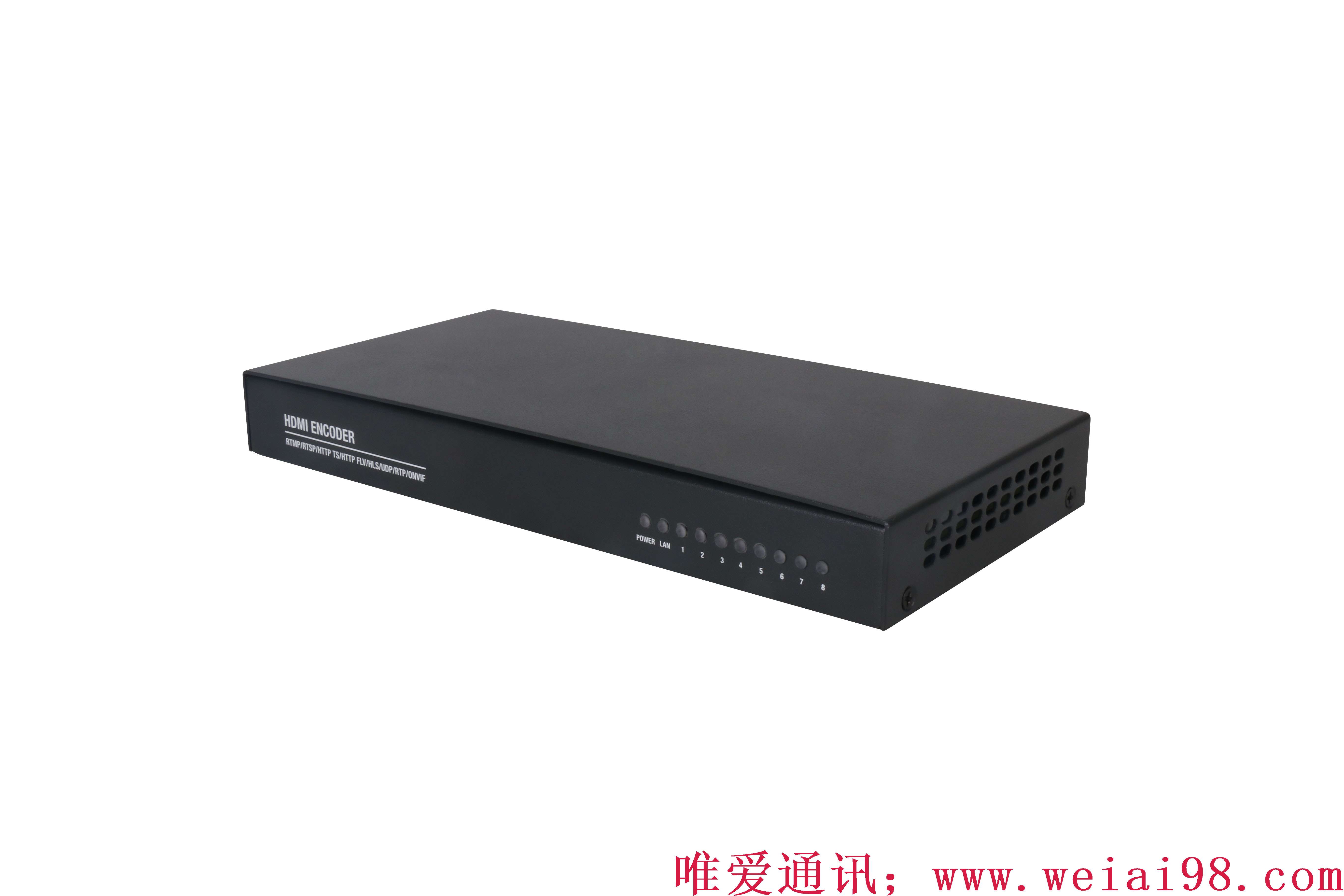

H.264 8通道HDMI视频编码器

• This HDMI video encoder is equipped with 8 channels HDMI and 2 channels external audio input supporting H.264 /AVC high profile /main profile /baseline profile coding format and eight video streamings output each channel, which is streaming by HTTP, RTSP, UDP, RTMP, HLS, FLV, Multicast. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.

  Feature
  •   Embedded HiLinux System, stable and effective

  •   Support H.264 /AVC baseline /main /high profile encoding

  •   From 16Kbit/s to 32Mbit/s for CBR /VBR code rate controlling

  •   Support HDMI embedded audio or external audio optional from output video streaming

  •   Support HTTP, UDP, RTSP, RTMP, HLS, FLV, Multicast streaming protocol

  •   Support image, logo, text parameter settings on the output video streamings

  •   Support english WEB operating interface and language customizable

  •   Support output video streaming resolution setting(Up to 1920 * 1080P /60fps)

  1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144

  •   Support up to 8 streamings output each channel

  •   Less than 200ms time delay for core chip processing

  •   Support GOP frame rate settings

  •   Network interface full-duplex mode with 1000M speed

  •   Support HDCP and HD blue-ray

  •   A wide area network remote management (Web control panel)

  •   Support different protocol transmission for the 4 output streamings each channel

  •   Support MP3 and AAC and AAC+ and AAC++ audio coding format selection

  •   A click to restore the default configuration

  •   Stable and effective, support 7 x 24h working time

  •   Support 4, 8, 12,16 channels with 1U chassis structure available, max support 16pcs encoder cards to be installed

该 HDMI 视频编码器配备 8 路 HDMI 和 2 路外部音频输入，支持 H.264 /AVC high profile /main profile /baseline profile 编码格式，每个通道输出 8 个视频流，通过 HTTP、RTSP、UDP、 RTMP、HLS、FLV、组播。其高集成度和高性价比的设计使该设备广泛应用于有线电视数字前端、酒店IPTV系统、流媒体直播、流媒体服务器等各种领域。编码器还可以与在线直播平台配合使用，如YouTube、Ustream、Twitter等

特点
• 嵌入式HiLinux系统，稳定有效

• 支持 H.264 /AVC 基线 /main /high profile 编码

• CBR/VBR码率控制从16Kbit/s到32Mbit/s

• 支持 HDMI 嵌入音频或从输出视频流中选择的外部音频

• 支持HTTP、UDP、RTSP、RTMP、HLS、FLV、组播流协议

• 支持输出视频流的图像、标志、文本参数设置

• 支持英文WEB操作界面，语言可定制

• 支持输出视频流分辨率设置（最高1920 * 1080P /60fps）

1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240、320x180、240x180、176x144

• 每个通道最多支持 8 个流输出

• 核心芯片处理时间延迟小于200ms

• 支持 GOP 帧率设置

• 网络接口全双工模式，1000M 速度

• 支持HDCP和高清蓝光

• 广域网远程管理（Web 控制面板）

• 支持每个通道4个输出流的不同协议传输

• 支持MP3和AAC以及AAC+和AAC++音频编码格式选择

• 单击即可恢复默认配置

• 稳定有效，支持7×24小时工作时间

• 支持4、8、12、16通道，可用1U机箱结构，最大支持安装16个编码器卡
