| Highlight | 1.Support DVB-S/S2/S2X, VCM/ACM/multi-stream/T2-MI, HEVC main 10 profile, AVS+ | ||||||
| 2.Support BISS auto roll, Full PowerVu, DRE &Biss key; | |||||||
| 3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support; | |||||||
| 4.Support SAT2IP by GTShare APK, DLNA; | |||||||
| 5.Support Built-in 2.4G WIFI module, Ethernet, and support 3G/4G usb dongle; | |||||||
| 6.Support Online Movie (Youtube,Youporn,Hotstar); | |||||||
| 7.Support IPTV (Customize, xtream, stalker); | |||||||
| 8.Support Network Sharing Cccam,Newcam,Mgcam; | |||||||
| 9. Support WebTV | |||||||
| 10.Technical support website : www.freesat.cn; | |||||||
| Note: We reserve the right to change the design and OEM/ODM supported | |||||||
| Main Chip Sets | CPU | 770MHz Dual Core | |||||
| Flash Memory | 64MB SPI Flash | ||||||
| DDR2 Memory | 1G bit RAM | ||||||
| TS Demux | Demultiplexer | ISO/IEC 13818-1 | |||||
| Input Bit Rate | Max 100Mbit/s | ||||||
| Video Decode | Video Decode | HEVC main profile@level 4.1 and main10 profile@L4.1,High tier MPEG-2 MP@ML H.264 BP,MP&HP@L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile@L5 VC1 SP@ML, MP@HL, AP@L0-3 H263 baseline profile JPEG decoder | |||||
| TV System | Automatic PAL/NTSC conversion | ||||||
| Aspect Mode | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box | ||||||
| Video effects | Standard, Default, Vivid. | ||||||
| Video Resolution | 1080P, 1080I, 720P, 576P, 480P, 576I, 480I | ||||||
| HDMI Color Space | RGB, YCbCr 4:4:4 YCbCr 4:2:2, Auto | ||||||
| Audio Decode | Audio Decode | MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3+, DRA CH/5.1CH | |||||
| Sound Mode | LEFT/RIGHT/STEREO/MONO | ||||||
| Sampling Frequency | 32KHz,44.1KHz,48KHz | ||||||
| Audio Out | LPCM Out, BS Out | ||||||

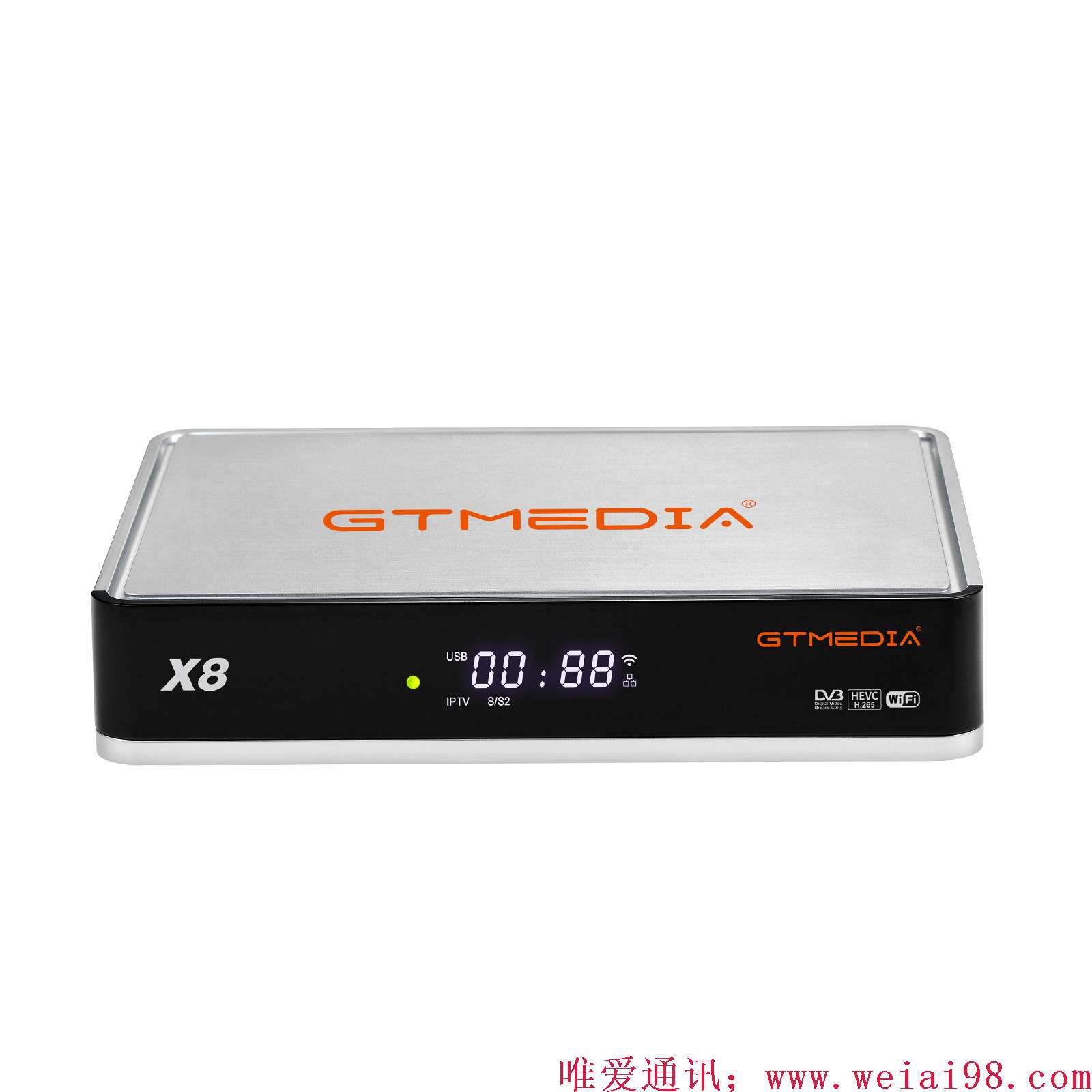

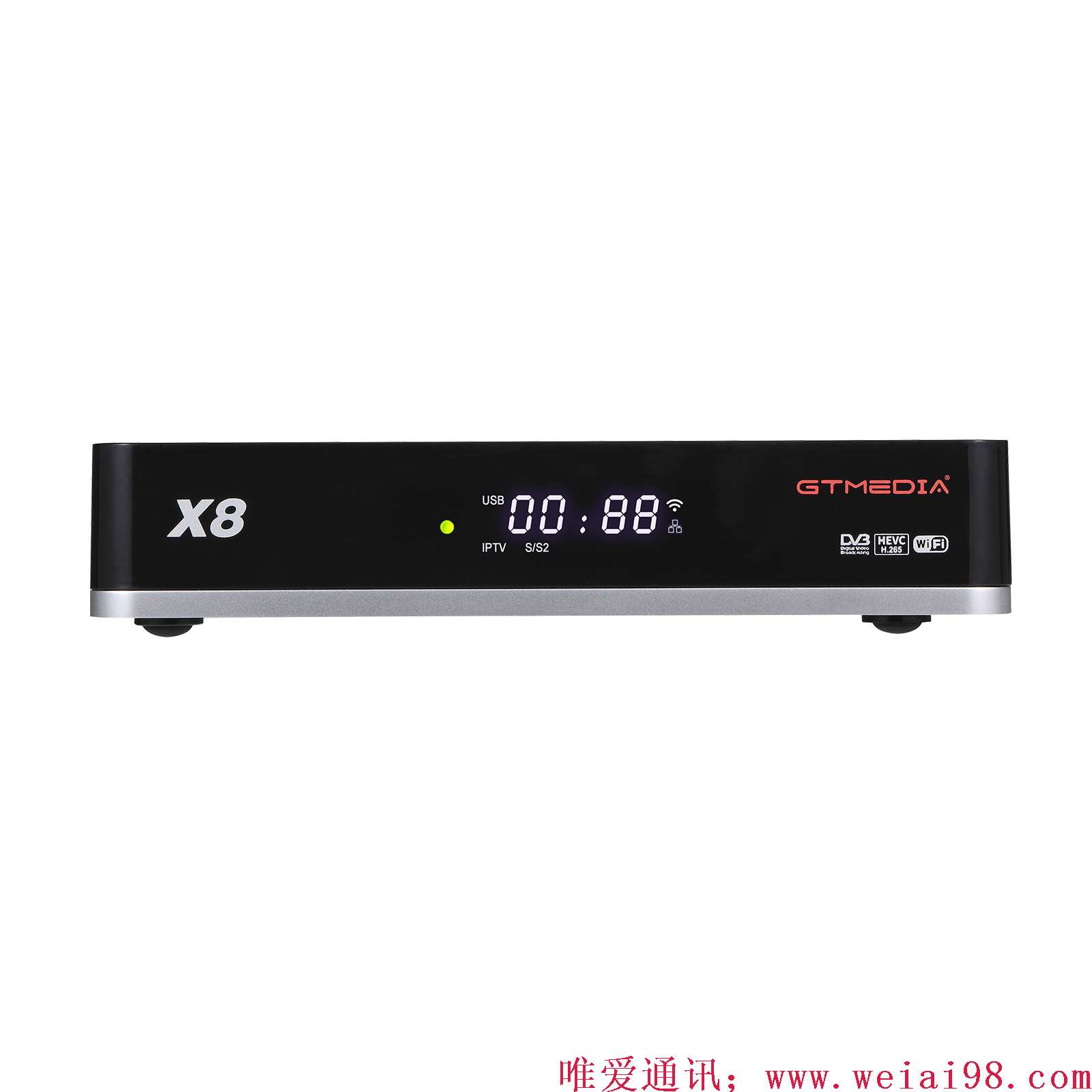

| Hardware specifications | Panel display | 4-digit white LED display (Support function display) | |||||
| LED Indicator | Power ON :Green; Standby :Red | ||||||
| Button | NOT | ||||||
| Wifi | Built in 2.4G WiFi Support IEEE 802.1.1b/g/n | ||||||
| IR | Exit IR for 38KHz,Infra Remote control | ||||||

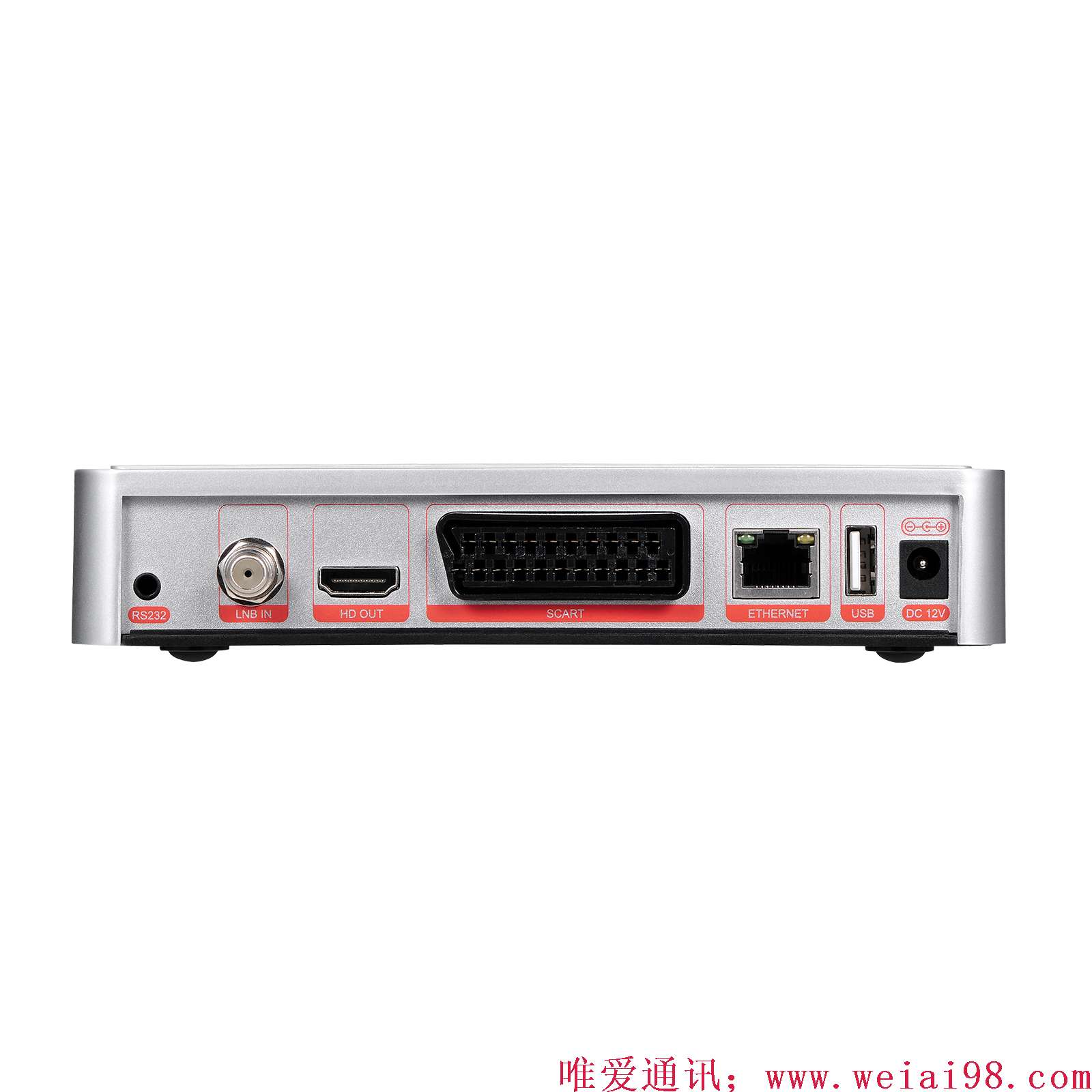

| Rear Panel | LNB IN (Frequency Range950MHz to 2150MHz) | ||||||
| HD OUT (up to 1080P) | |||||||
| SCART OUT | |||||||
| 1*USB HOST | |||||||
| 1*RJ45 | |||||||
| 1*RS232 (3-pin 3.5 mm jack) | |||||||
| DC IN (DC12V/1.5A) | |||||||
| DVB-S/S2 specificati-ons | System standard | ETS 302 307 | |||||
| Frequency Range | 950~2150MHz for DVB-S/S2/S2X baseband demodulator | ||||||
| LNB Power and Polarization | DiSEqC1.0/1.1/1.2/USALS Motor fully support, Support Unicable, 13/18V DC @ 400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection | ||||||
| Input Level Range | -80dBm ~ -20dBm (average power) | ||||||
| Symbol Rates | DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK | ||||||
| Forward error correction rate | 1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | ||||||
| Carrier frequency acquisition range | ±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates | ||||||
| Symbol Rates | 2 ~ 90MSPS(Code Rate 1/2) | ||||||
| Roll-off factors | Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35 | ||||||
| Code Rates | 1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates | ||||||
| ANT. Connector | Connector:IEC TYPE F Input Impedance:75 Ω | ||||||
| Sortware Features | Standard | Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band satellite), MPEG-2/4 and H.265 Standard | |||||
| Channel Search | Support automatic network search for new added transponders | ||||||
| Channels Number | 6000+ channels TV and Radio programmable | ||||||
| Channel | Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort) | ||||||
| Favorites | 31 different favorite groups selection | ||||||
| OSD Language | English,French,German,Italian,Spanish,Portuguese,Russian,Turkish,Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian. | ||||||
| OSD Color | 32-bits OSD with anti-flickering | ||||||
| OSD Setting | Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3. | ||||||
| Other Setting | Sets up multiple habitual operation Settings | ||||||
| Parental Ctrl | Parental control for channels | ||||||
| Easy Menu | Plug and Play installation, with an easy to use Menu System | ||||||
| EPG | Fully support to 7 days Electronic Program Guide(EPG) | ||||||
| Subtitle | support DVB EN300743 and EBU | ||||||
| Teletext | support DVB ETS300472 by VBI | ||||||
| SoftUpgrade | Software upgrades through USB port, or FTP upgrade. | ||||||
| Time Set | Time set by GMT offset automatic and manual,Summer Time support | ||||||
| Timer | 5 event timers,off/Once/Daily/Weekly Mode | ||||||
| USB Decode | USB 2.0 | Support FAT/FAT32/NTFS big capacity hard disk | |||||
| PVR Option | USB 2.0 for PVR,TIMESHIFT,media files playback | ||||||
| Media Codec | TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files | ||||||
| Audio Codec | WMA,MP3 | ||||||
| Photo Codec | JPG, BMP, PNG, GIF | ||||||
| Packing | Product Dimension | 175*120*40MM（L*W*H） | |||||

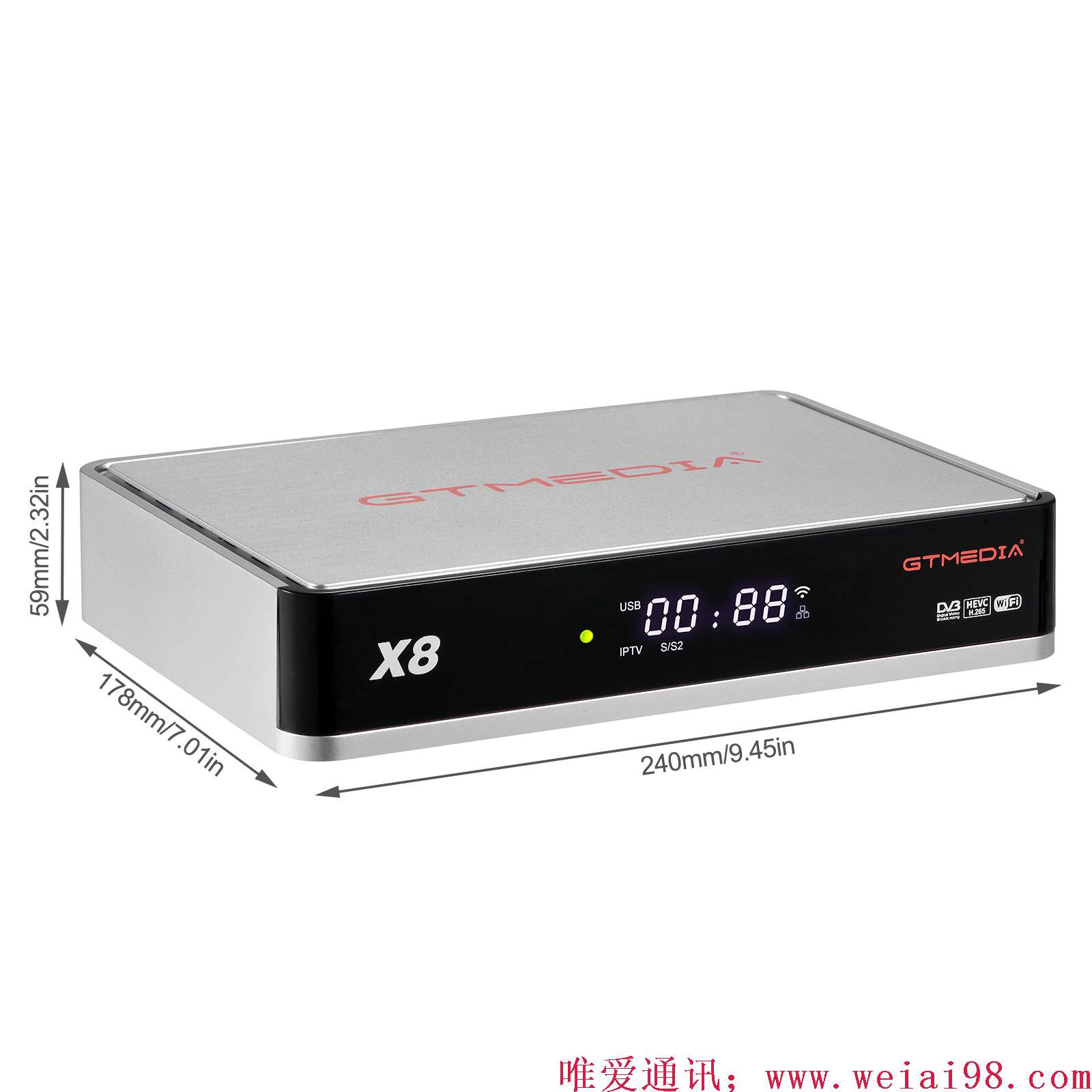

| Packaged Size | 240*178*59MM | ||||||
| Carton Size | 500*320*380MM (20pcs/ctn) | ||||||
| Unit Weight | 0.65 Kg with gift box | ||||||
| Carton Qty&Weight | 20 pcs/Carton, 13.5 kgs | ||||||

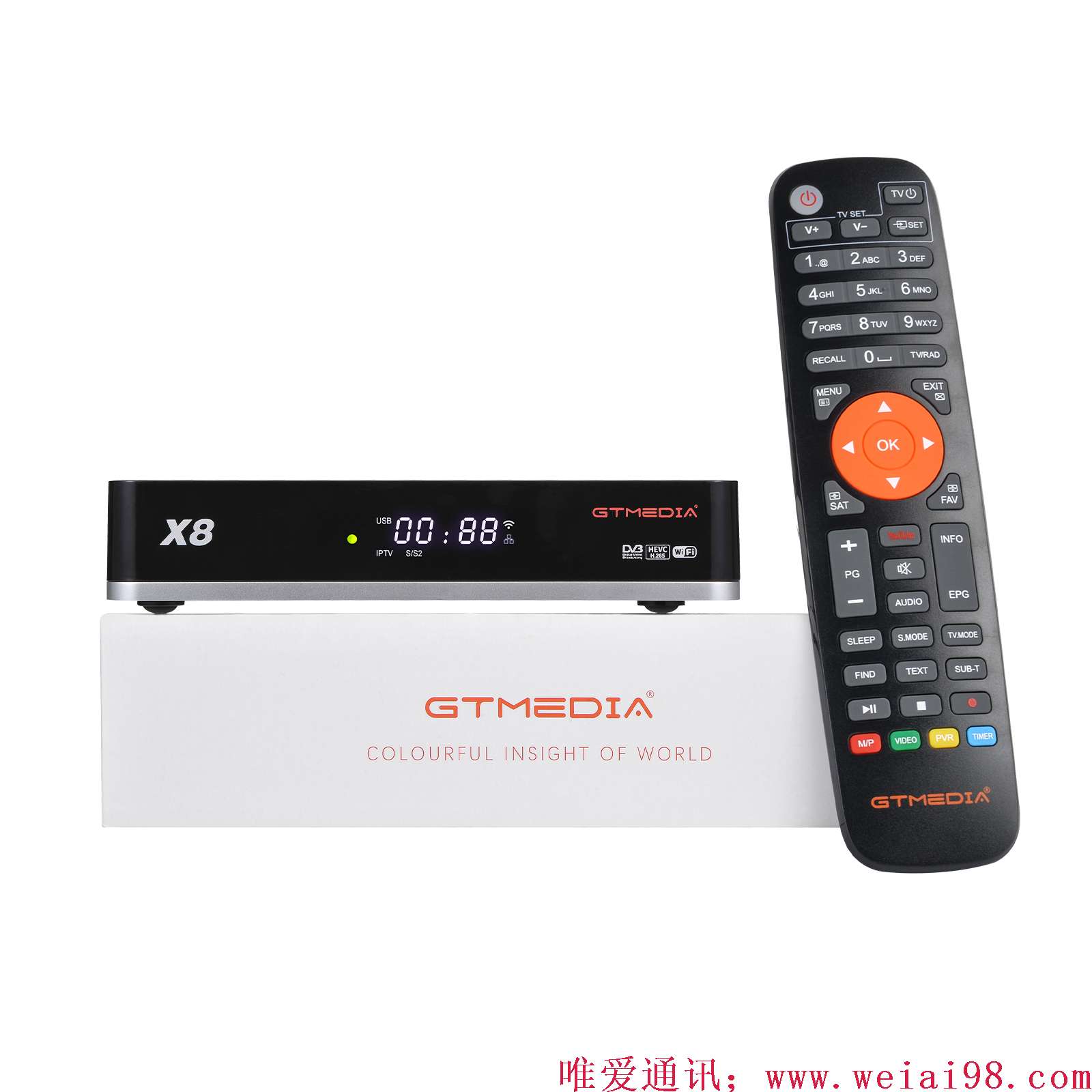

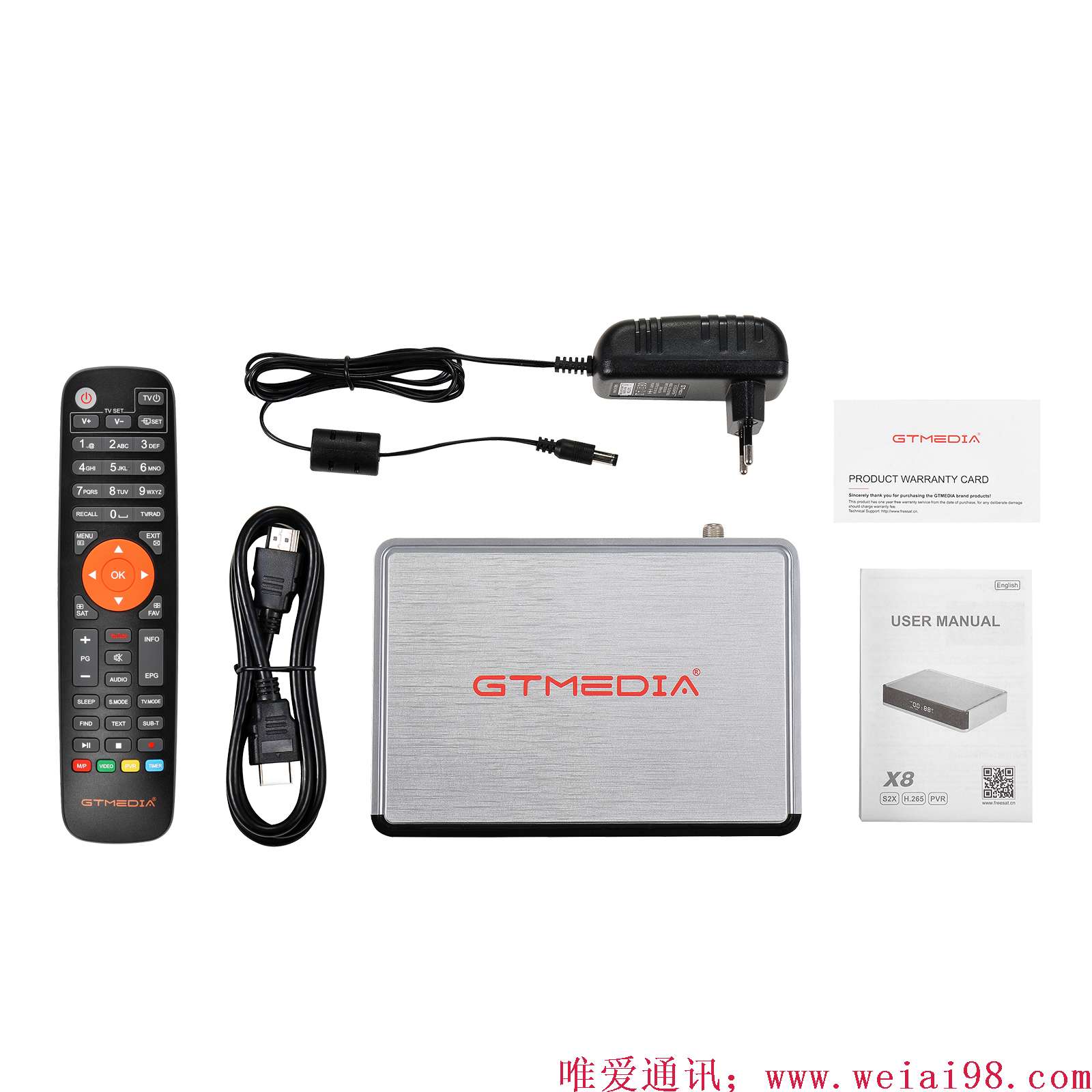

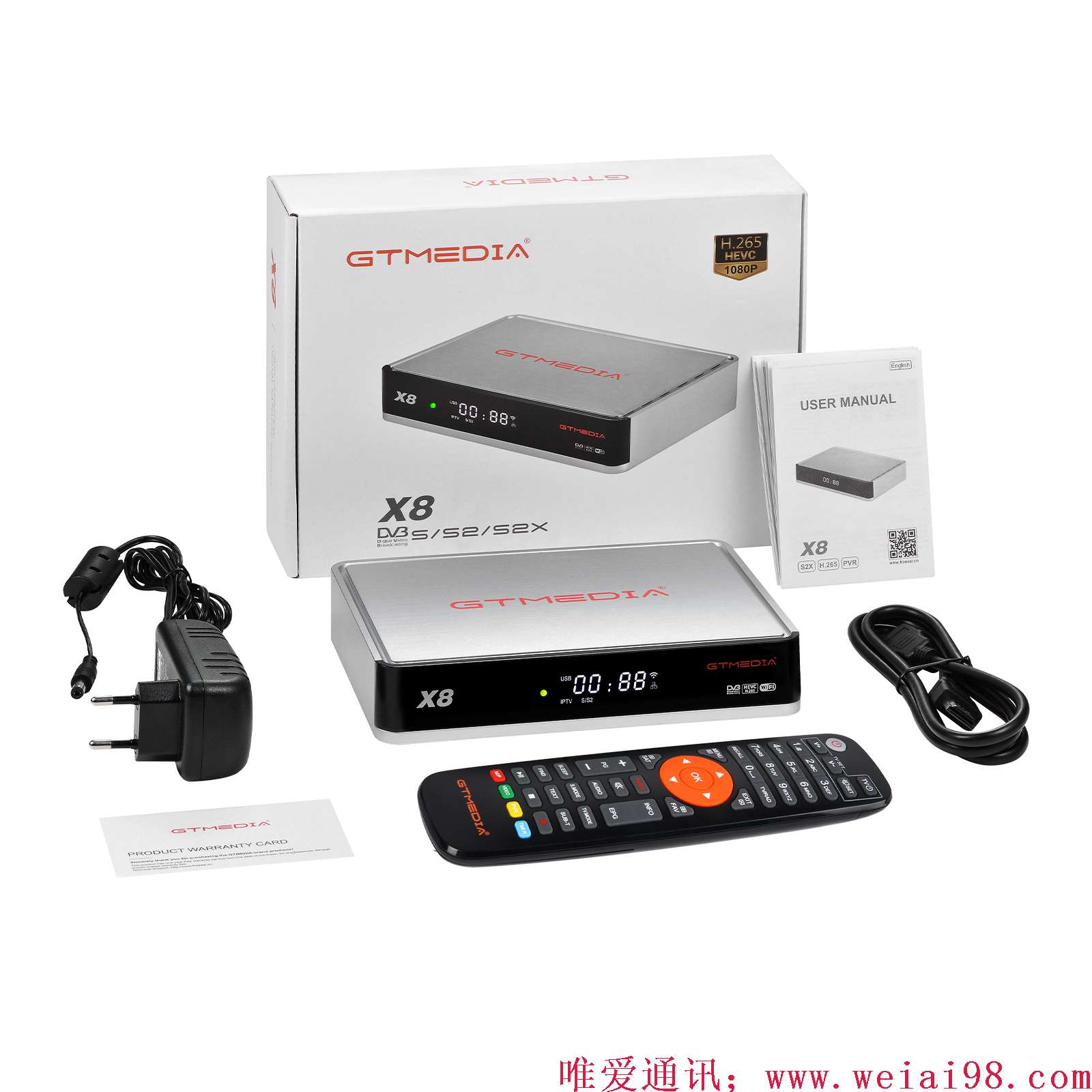

| Accessories | Gift Box, Adapter, IR remote control, HDMI Cable, User Manual,Warranty card | ||||||
| Physicals | Power Supply | AC 100V ～250V, 50/60Hz | |||||
| Power Consumption | 10W in operation ≦1 W Standby Power Mode | ||||||
| Temperature | Operation 0～+45℃; Storage -10~+60℃ | ||||||
| Humidity | 20~90%, non-condensed | ||||||
