Description

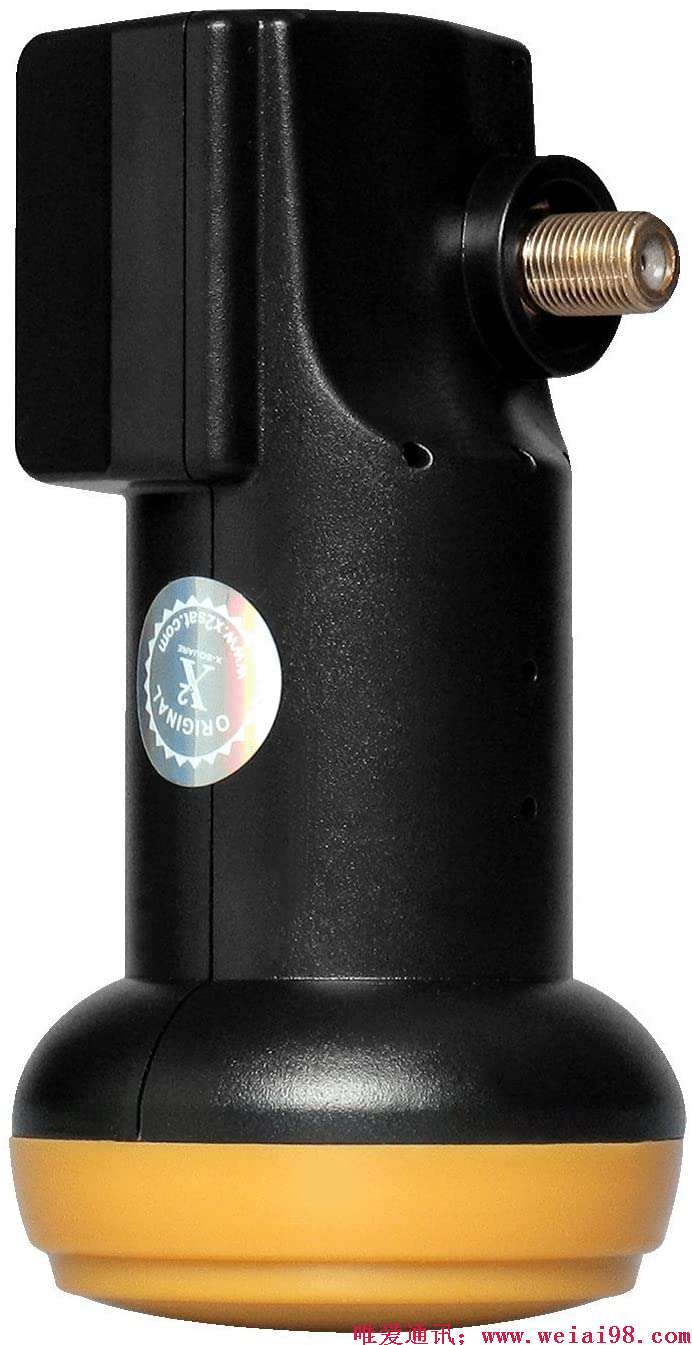

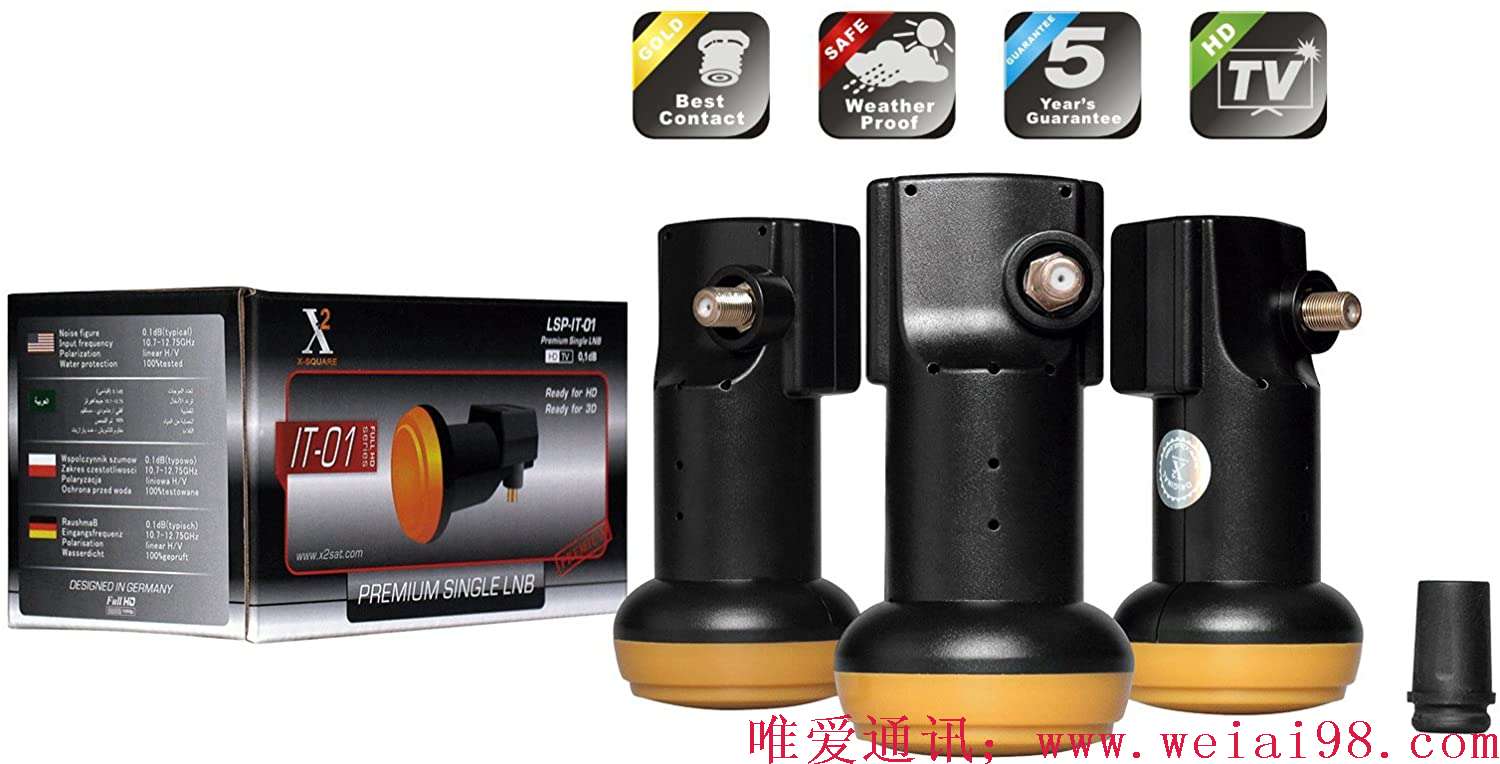

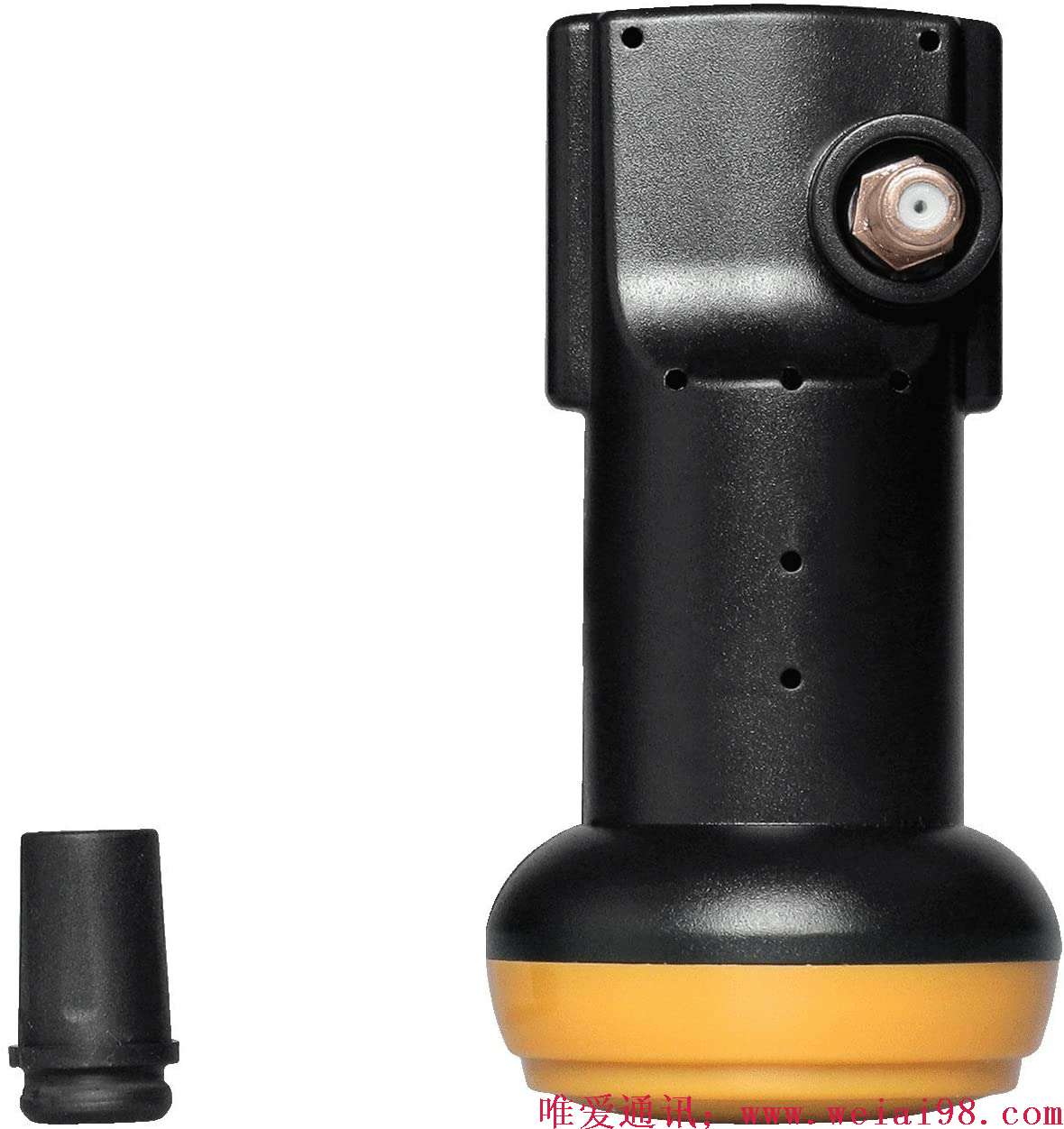

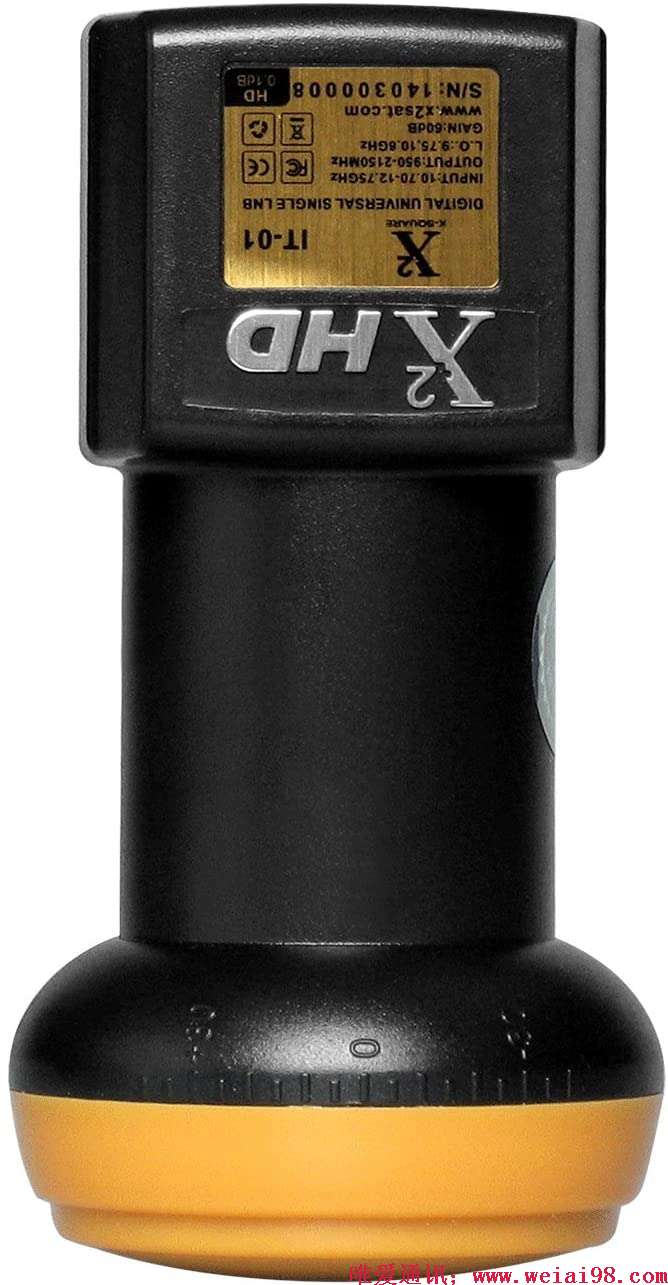

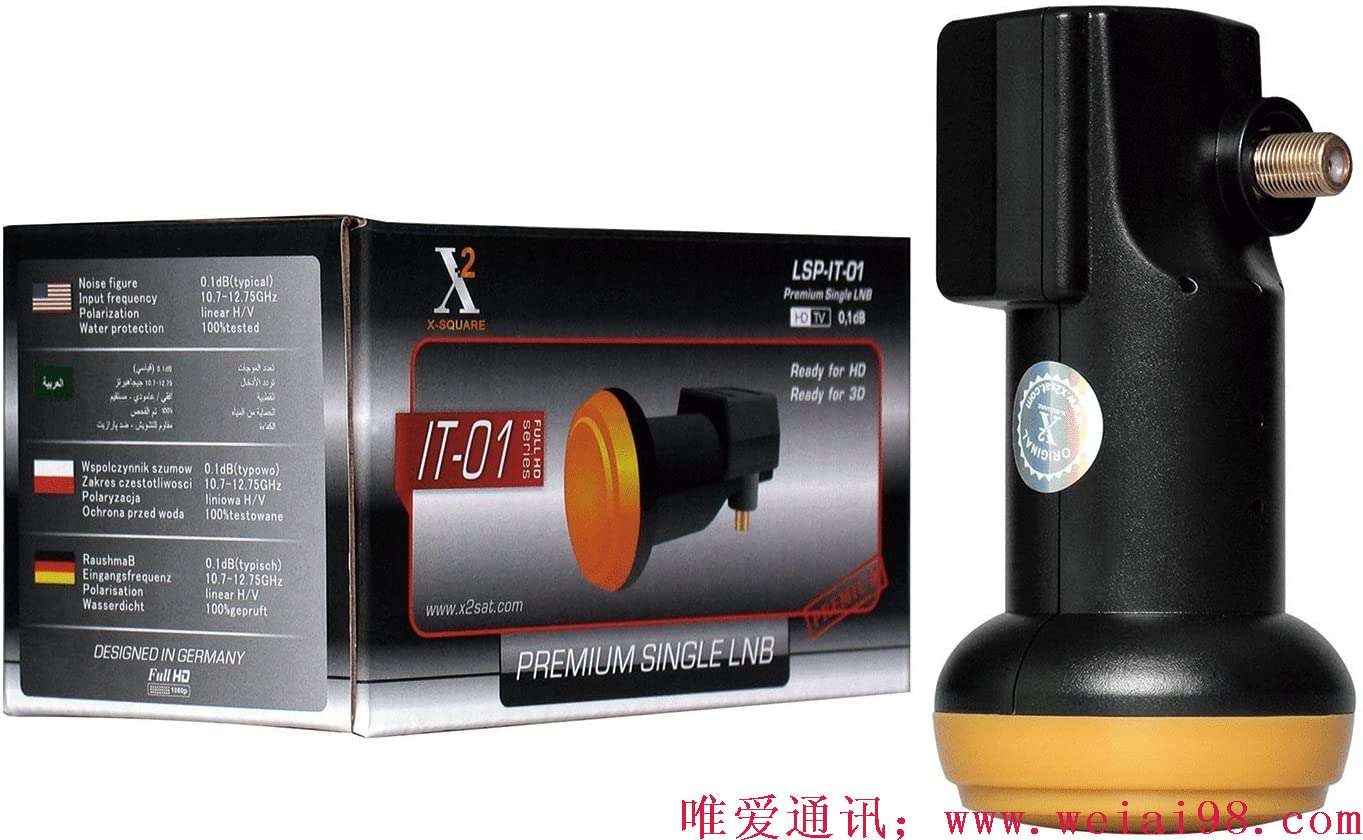

Why you need to Choose this LNB : A) New Version 2020 with new built in technology to increase the signal with ultra strong stability , B) Made especially for Americas and USA markets , C) Built in Golden F-Connector for Strong Connectivity , D) New Design and New Cap Technology for the best protection from weather and waterproof , Technical Details : Input Frequency Range LOW Band:10.7~11.7GHz High Band:11.7~12.75GHz Output Frequency Range Low Band: 950 - 2050MHz High Band: 1100 - 2150MHz Input VSWR 2.5:1 Output VSWR 2.5:1 L.O. Frequency Low Band 9.75GHz High Band 10.6GHz L.O. Stability ±2MHz @ (-40c~70c) L.O. Phase Noise -70dBc/Hz (1KHz Offset) -90dBc/Hz (10KHz Offset) -110dBc/Hz (100KHz Offset) Conversion Gain 60dB (TYP) Gain Flatness ±0.5dB/6MHz; ±2.5dB/IN BAND Noise Figure ±0.1dB (Typ) Image Rejection 50dB(Typ) Output Power +5dB (Min) (at 1dB gain compression) Cross Polarization Discrimination 23dB(Min) DC SUPPLY VOLTAGE 11~14.5V (V),15.5~22V (H) SUPPLY CURRENT 130mA (MAX) LOW/HIGH BAND SWITCHING Low Band: 0Hz HIGH BAND: 22KHz±4KHz Output Connector 75Ω "F" type female RELATIVE HUMIDITY 0%~95% Operating Temperature -45 °C to +70 °C
Features & details
Designed and Made Especially for USA and Americas , Model: 2016 , High Performance
Low Noise Figure 0.1dB & Ultra High Gain
Full HD & SD Universal LNB compatible with all HD & SD Receivers
Built in Waterproof (Weather Protection) , Support 1 Receiver in One Dish Antenna
Best Quality and Price, Warranty 1 Year
Product information
Package Dimensions4.8 x 2.7 x 2.6 inches
Item Weight4 ounces
ManufacturerX2
ASINB008NN83DW
Item model numberIT01
Customer Reviews4.0 out of 5 stars 61Reviews
