Feature

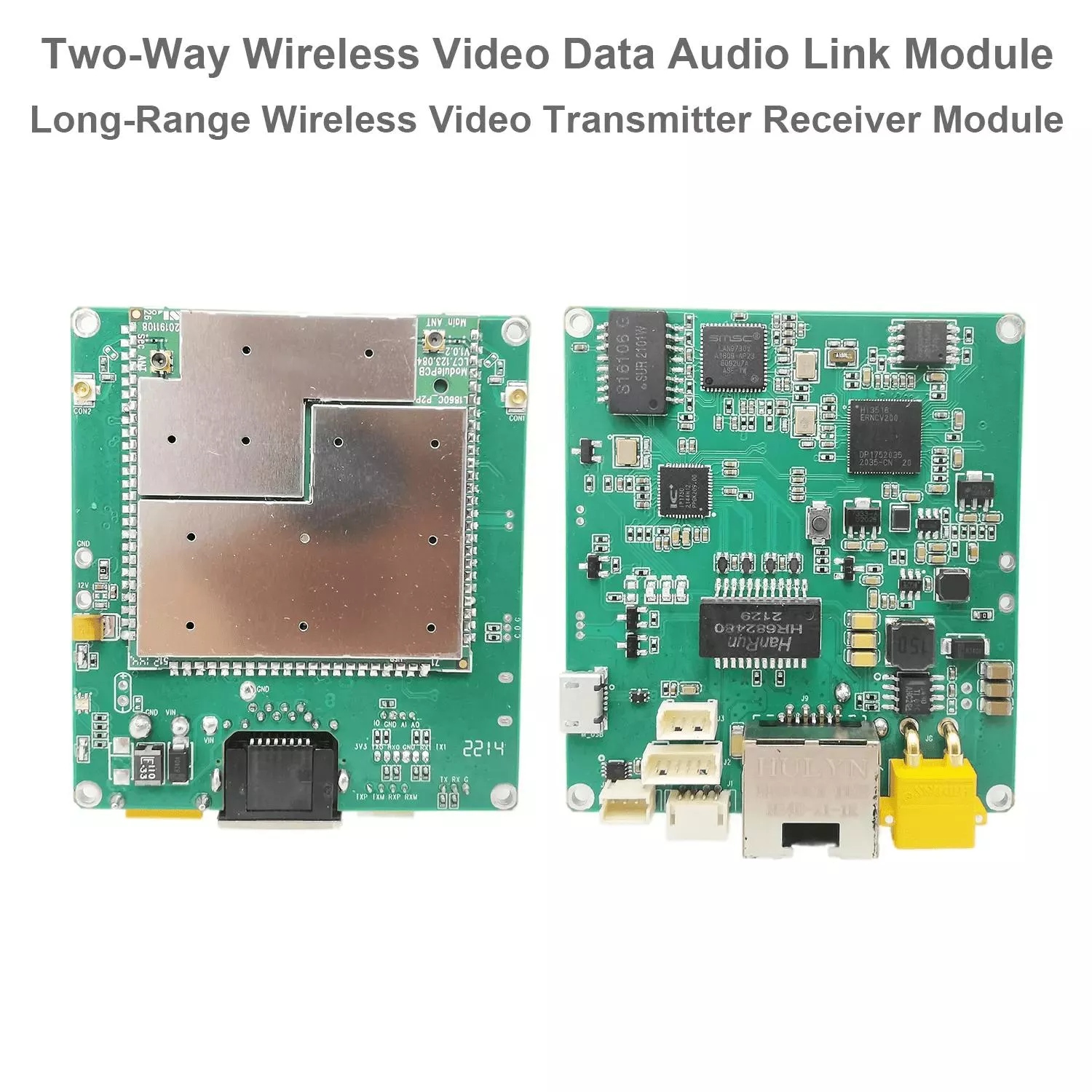

1. TDD OFDM two-way wireless video data RC control link module board
2. Band 800Mhz / 1.4G / 2.4G: 806~826HMz, 1428~1448MHz, 2402~2482MHz
3. Support FHSS Frenquency-hopping spread spectrum automatic frequency hopping
4. Bandwidth: 3MHz, 5MHz, 10MHz, 20MHz, selectable
5. Max 30Mbps@20Mhz bandwidth
6. RF transmission power: 25±2 dBm
7. Constellation: QPSK, 16QAM, 64QAM, self-adaption
8. Sensitivity: -106dBm(2.4GHz 1Mbps), -108dBm(1.4GHz 1Mbps), -108dBm(800MHz 1Mbps)
9. Supports transparent IP Data transmission (2 IP network ports)
10. Supports serial data transmission (3 x RS232 UART or TTL)
11. Supports audio input and output with codec on board
12. Without installing an external Power Amplifier, Support upto 17km LOS（UAV-toground）and 2km LOS (ground-to-ground)
13. Web UI or Ssrial UART for management
14. AES128 encryption and decryptionl
15. Uplink and downlink stream contro
16. Networking type communication: point-to-point, one point-to-many points, many points-to-one point, IP mesh networking (optional)
17. Power consumption: <4.5W
18. Dimensions: 58*64*13mm
19. Weight:32g
20. Working Temp. -20℃ ~ +65℃
21. Storage Temp. -40℃ ~ +80℃
22. Dual antenna transmit and receive, MIMO mode of operation
23. Modulation method: QPSK/QAM16/QAM64 automatic adaptation
24. Maximum transmission power: 25±2dBm
25. Support wireless link encryption and decryption
26. up to 16 access nodes can be connected to one central node
